Orange Electronic Passenger Vehicle Retrofit TPMS System
Introduction
The Orange Electronic P409S Tire Pressure Monitoring System (TPMS) gives the driver detailed information about his or her tires. The "read-at-a-glance" LCD Display allows this Tire Pressure Monitoring System’s capabilities to be custom programmed. Each tire's low pressure alert (between 18 and 35 psi), high pressure alert (between 40 and 60 psi), and high temperature alert, can be custom programmed. Several warnings indicators are provided including a change in display color (from green to red) of the effected tire(s), display of the real-time pressure and real-time temperature of the tire. The system will also warn of an excessively high temperature.
If a tire’s air pressure drops below (or above) the programmed values, the LCD display will identify the problem tire by changing the effected tires numeric display from green to red. The vehicle can then be pulled to a safe location and the highlighted tire on the LCD display can be inspected.
How It Works
The wireless tire pressure sensors are mounted on your wheels, inside your tires, using special valve stems (each sensor weighs only 1.24 oz). These sensors send pressure and temperature data via a digitally encoded, wireless signal to the receiver mounted in your vehicle. The sensors/transmitters are equipped with motion detectors that turns off data transmission to prolong their lithium batteries' life (estimated at more than 7 years of normal vehicle use).
The system's receiver or display installs like a radar detector; just choose a spot to mount it and plug it into your cigarette lighter or power port.
Requirements
This system works with virtually any car, pick-up, minivan, full-size van or SUV with tires that require a cold inflation pressure of 65 psi or less.
Warranty
Orange Electronic Tire Pressure Monitoring Systems are backed by a one-year/unlimited mileage manufacturer's warranty.
The Orange Electronic P409S Tire Pressure Monitoring System (TPMS) gives the driver detailed information about his or her tires. The "read-at-a-glance" LCD Display allows this Tire Pressure Monitoring System’s capabilities to be custom programmed. Each tire's low pressure alert (between 18 and 35 psi), high pressure alert (between 40 and 60 psi), and high temperature alert, can be custom programmed. Several warnings indicators are provided including a change in display color (from green to red) of the effected tire(s), display of the real-time pressure and real-time temperature of the tire. The system will also warn of an excessively high temperature.
If a tire’s air pressure drops below (or above) the programmed values, the LCD display will identify the problem tire by changing the effected tires numeric display from green to red. The vehicle can then be pulled to a safe location and the highlighted tire on the LCD display can be inspected.
How It Works
The wireless tire pressure sensors are mounted on your wheels, inside your tires, using special valve stems (each sensor weighs only 1.24 oz). These sensors send pressure and temperature data via a digitally encoded, wireless signal to the receiver mounted in your vehicle. The sensors/transmitters are equipped with motion detectors that turns off data transmission to prolong their lithium batteries' life (estimated at more than 7 years of normal vehicle use).
The system's receiver or display installs like a radar detector; just choose a spot to mount it and plug it into your cigarette lighter or power port.
Requirements
This system works with virtually any car, pick-up, minivan, full-size van or SUV with tires that require a cold inflation pressure of 65 psi or less.
Warranty
Orange Electronic Tire Pressure Monitoring Systems are backed by a one-year/unlimited mileage manufacturer's warranty.

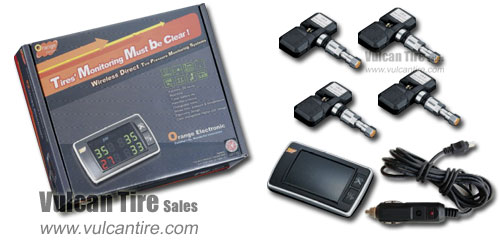

- Kit
Includes - 1 Receiver with Multicolor Display
- 4 Sensors
- 1 Power Adaptor
- Installation Difficulty
- Why is this Easy?
